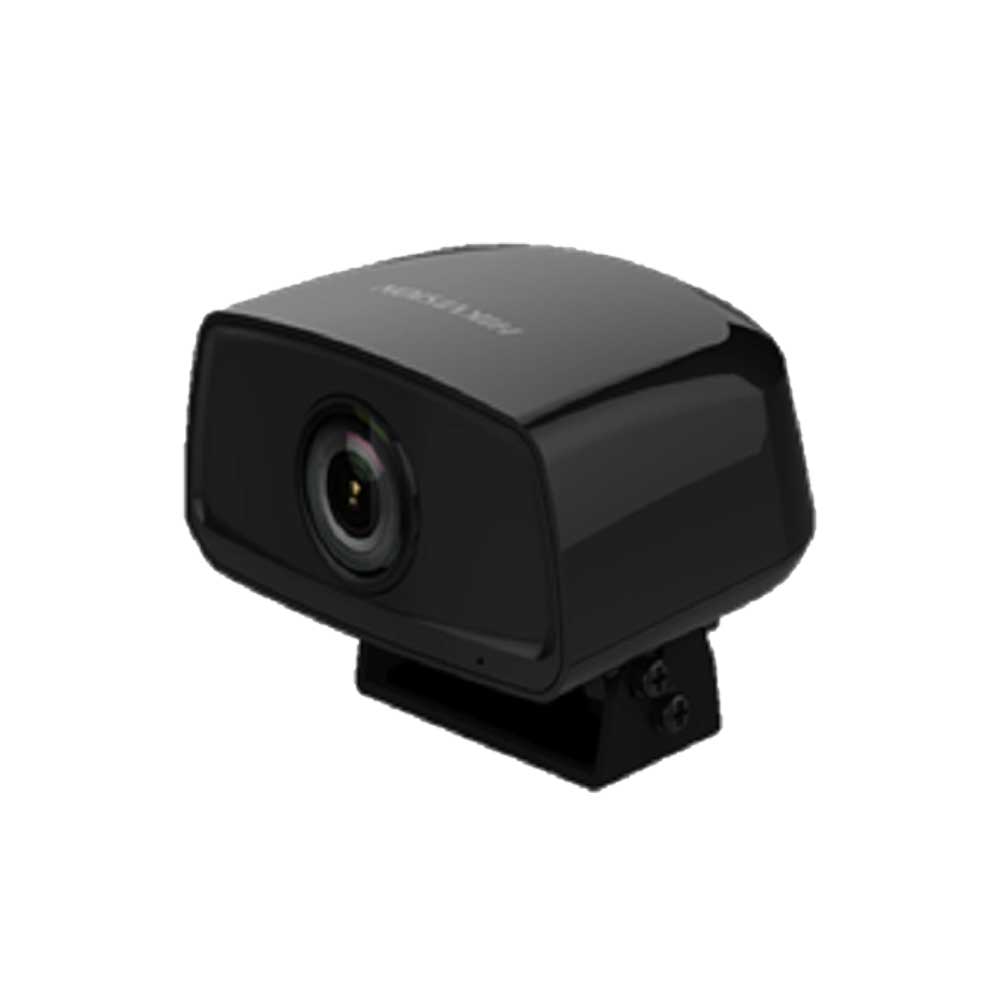

DS-2XM6222FWD-I(M)
1/2.7" Progressive Scan CMOS
2.8 mm, 4 mm, 6 mm, 8 mm, and 12 mm, optional
1920 × 1080 resolution
H.265, H.265+, H.264+, H.264
120dB WDR
IP67
IR range: 10 to 30 meters
Image enhancement: BLC, 3D DNR, HLC, defog, EIS
6 behavior analyses, 2 exception detections and face detection
2.8 mm, 4 mm, 6 mm, 8 mm, and 12 mm, optional
1920 × 1080 resolution
H.265, H.265+, H.264+, H.264
120dB WDR
IP67
IR range: 10 to 30 meters
Image enhancement: BLC, 3D DNR, HLC, defog, EIS
6 behavior analyses, 2 exception detections and face detection
Camera | ||
---|---|---|
Image Sensor: | 1/2.7” Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.018 lux @(F1.2 AGC ON) B/W: 0.006 lux @(F1.2 AGC ON), 0 lux with IR |
|
Shutter time: | 1/3 s to 1/100,000 s | |
Slow shutter: | Yes | |
Lens: | 2.8 mm, 4 mm, 6 mm, 8 mm, and 12 mm, optional | |
Lens Mount: | M12 | |
Adjustment Range: | Pan: -20° to 20°, tilt: -15° to 20° | |
Day& Night: | IR Cut Filter | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.265/H.264/MJPEG | |
H.264 code profile: | Baseline Profile/Main Profile/High Profile | |
Video bit rate: | 32Kbps~16Mbps | |
Triple Streams: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 1920 x 1080 | |
Sub Stream: | 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240) |
|
Third Stream: | 50Hz: 25fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 640 × 480, 320 × 240) 60Hz: 30fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 640 × 480, 320 × 240) |
|
Image Settings: | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser | |
Target Cropping: | Yes | |
BLC: | Yes, zone configurable | |
HLC: | Yes | |
Smart Defog: | Yes | |
EIS: | Yes | |
3D DNR: | Yes | |
Picture Overlay: | Logo picture cab be overlaid on video with 128 × 128 24bit bmp format, region optional | |
Day/Night Switch: | Yes |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering |
|
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Interface | ||
---|---|---|
Communication Interface: | DS-2XM6222FWD-I: 1 RJ45 10M/100M self-adaptive Ethernet port DS-2XM6222FWD-IM: 1 M12 aviation plug |
|
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
General | ||
---|---|---|
IR Range: | 10 to 30 meters | |
Operation Condition: | -30 °C to +65 °C (-22 °F to +149 °F), Humidity 95% or less (non-condensing) | |
Power Supply: | 12 V DC ± 20%, PoE (802.3af, class 3) | |
Power Consumption: | 12 VDC, 0.43 A, max. 4W PoE (802.3af, 36V to 57V), 0.14 A to 0.09 A, max. 5.2 W |
|
Weather Proof: | IP67 | |
Dimensions: | 78.8 × 81.6 × 64 mm (3.10" × 3.21" × 2.52") | |
Weight: | Camera: Approx. 330 g (0.73 lb.) |
