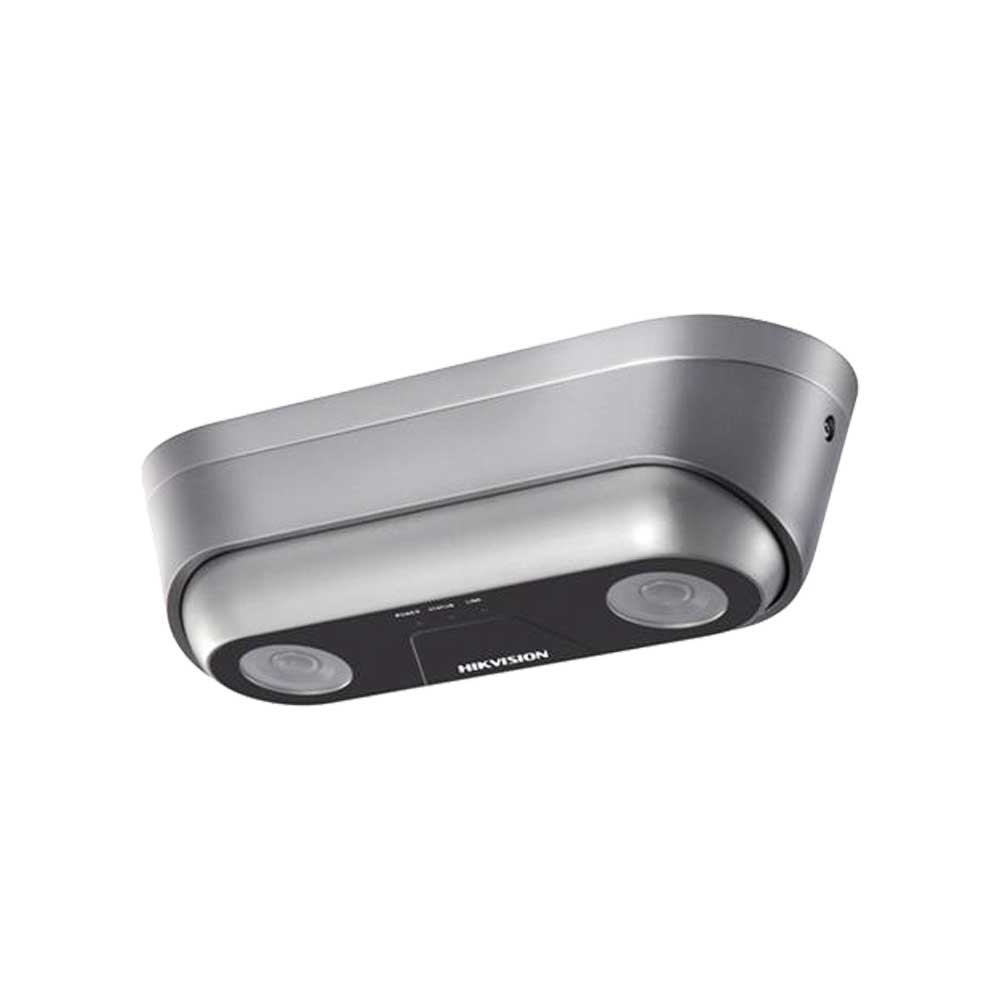

IDS-2XM6810F-I/C

 1/3” Progressive Scan CMOS
 Dual lens, dual CPU, support stereo views
 2 mm lens
 Max. resolution 640 × 960
 H.264
 Flash memory storing people counting data
 3D digital noise reduction
 12 VDC (wide voltage range: 8 V to 36 V) and PoE
 Up to 3 m IR range

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/3" Progressive Scan CMOS
Signal System:		PAL/NTSC
Shutter time:		1/25 s to 1/10,000 s
Lens:		2.8 mm and 4 mm, optional
Lens Mount:		M12
Adjustment Range:		Tilt: 0° to 45°
Day& Night:		Auto
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264
H.264 code profile:		Baseline Profile/Main Profile/High Profile
Video bit rate:		32Kbps~8Mbps
Dual Stream:		Yes

Max. Image Resolution:		640 × 960
Frame Rate:		24fps/25fps
Sub Stream:		50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960)
Image Enhancement:		3D DNR

Wi-Fi Specification (-W)
Wireless Range:		50m(depend on environment)
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General
Operation Condition:		-30°C to +60°C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Consumption:		12 VDC, max. 7 W, 0.6A PoE (802.3af, 36 V to 57 V), max. 7 W, 0.2A to 0.13A
IR Range:		Up to 3 m
Dimensions:		Camera: 216 × 87 × 57 mm (8.51″ × 3.41″ × 2.22″) Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″)
Weight:		Approx.850 g (1.87 lb.), 1100 g (2.43 lb.) with package
