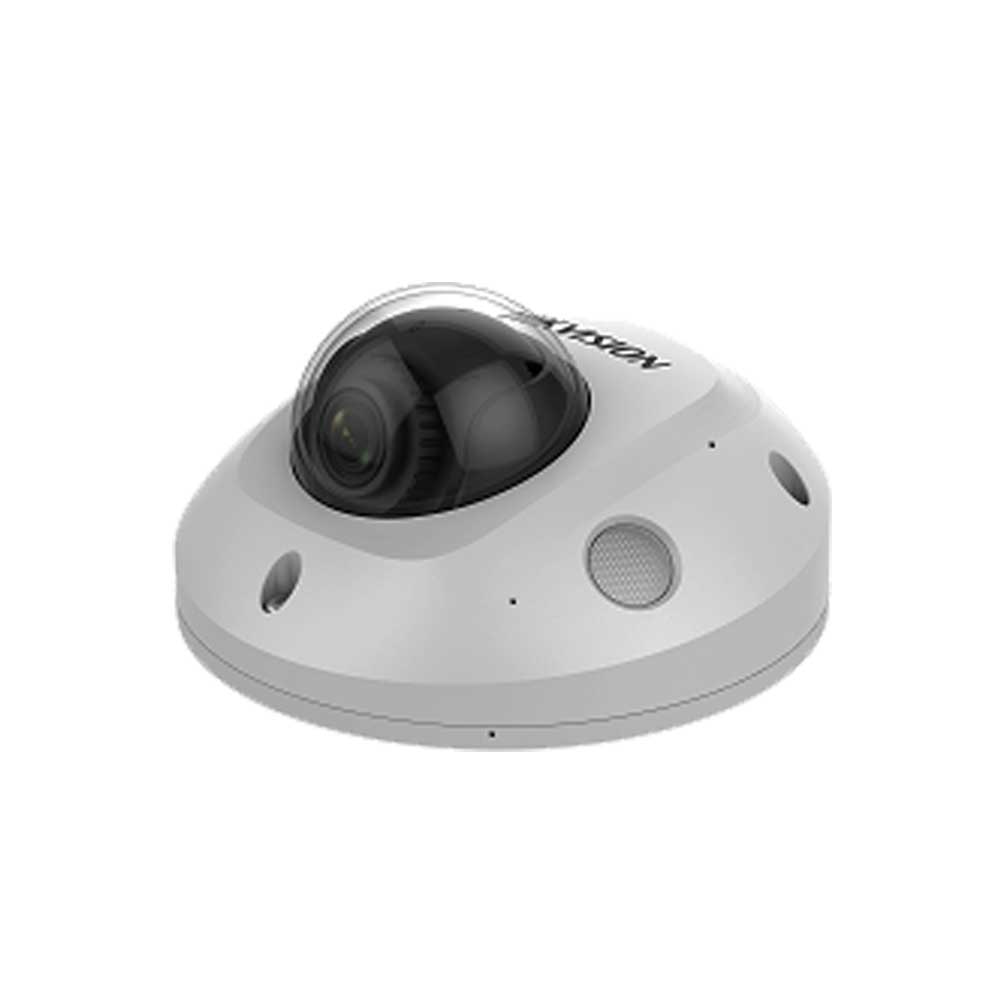

DS-2XM6756FWD-I(S)(M)

 1/2.9” Progressive Scan CMOS
 3072 × 2048 @ 20fps
 2.0/2.8/4/6/8 mm fixed lens
 Three streams
 120dB WDR
 3D DNR
 4 behavior analyses and face detection
 Audio and alarm I/O (-S)
 Smart encoding: low bit rate, low latency
 ROI
 IP67, IK10
 H.265, H.265+
Camera
Image Sensor: 1/2.9" Progressive Scan CMOS
Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Yes
Lens: 2.0/2.8/4/6/8 mm fixed lens
Lens Mount: M12
Adjustment Range: Pan: -30° to +30°, Tilt: 0° to 75°, Rotate: 0° to 360°
Day& Night: IR Cut Filter
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265/H.264/MJPEG
H.264 code profile: Main Profile/High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams: Yes
Max. Image Resolution: 3072 x 2048
Sub Stream: H.265/H.264/MJPEG
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: H.265/H.264
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement: BLC, 3D DNR
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping: No
BLC: Support
3D DNR: Yes
ROI: Yes
Picture Overlay: No
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M Ethernet port
Audio: With –S model: 1 input (line in), 1 output
Alarm: With -S model: 1 input, 1 output (up to 12VDC, 30mA)
Alarm Input: 1
Alarm Output: 1
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support(-S)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Recognition: Face Detection
General
IR Range: up to 30 m
Operation Condition: -30 °C to 60 °C (-22 °F to 140 °F), humidity less than 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 V DC ± 25%, 0.5 A, max. 6 W
PoE: (802.3af,36V-57V), 0.2A to 0.13A, Max:7.5W
Impact Protection: IK10
Weather Proof: IP67
Dimensions: Camera: Φ 110 mm × 57.4 mm (4.3″ × 2.3″), with base: Φ 110 mm × 69.4 mm (4.3″ × 2.7″)
With package: 60 mm × 100 mm × 250 mm (2.4″ × 4.0″ × 9.8″)
Weight: Camera: Approx. 580 g (1.3 lb.)
With package: 860 g (1.9 lb)
